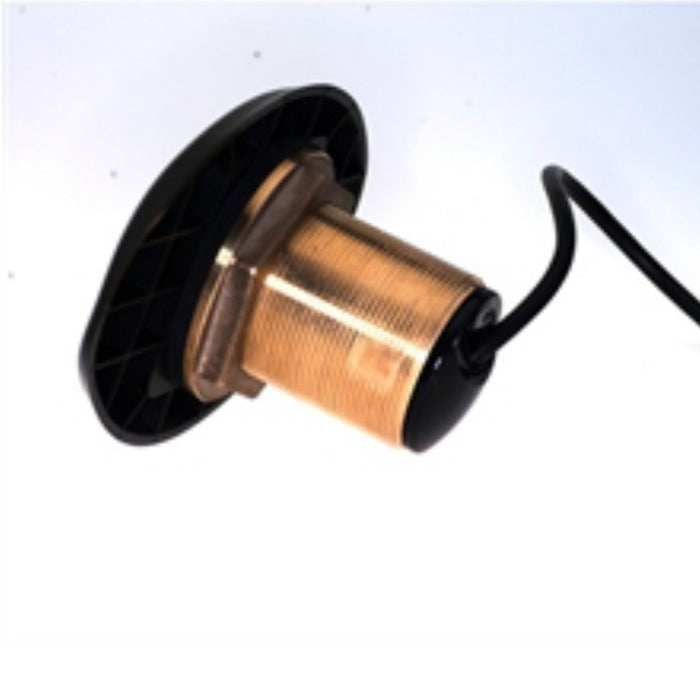

XSONIC 50/200 HDI Transducer (20°)

Introducing NEW Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducers-

-Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature -Available in 0°12°20°tilt angles -10 m (33 ft) cable Performance Beam Width at -3dB -50kHz 45° -200kHz 11° - 455kHz •Fore to aft 2.8° •Port to starboard 56° –800kHz •Fore to aft 1.6° •Port to starboard 32° Connection The transducer comes with a 33 ft cable and Black 9 Pin connector which plugs directly into a compatible echosounder.
The transducer must be selected in the installation menu on the device.

 Made to order 3-5 working days
